Intelligent guardrail collision monitoring system

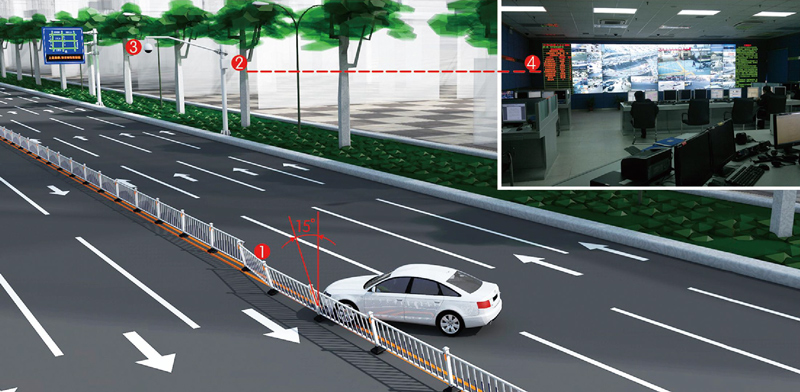

⑴ The car hits the guardrail and the guardrail tilts. When the guardrail tilts at an angle of 15° or more, the sensor installed inside the guardrail column starts to send an alarm message, and the small antenna wirelessly transmits the alarm message to a nearby receiving host.
⑵ The alarm receiving host receives the alarm message.
⑶ And control the spherical camera to rotate the camera to the section where the accident occurred.
⑷ The spherical camera transmits the road section image to the traffic monitoring center through the city network transmission channel.
Intelligent guardrail collision monitoring system

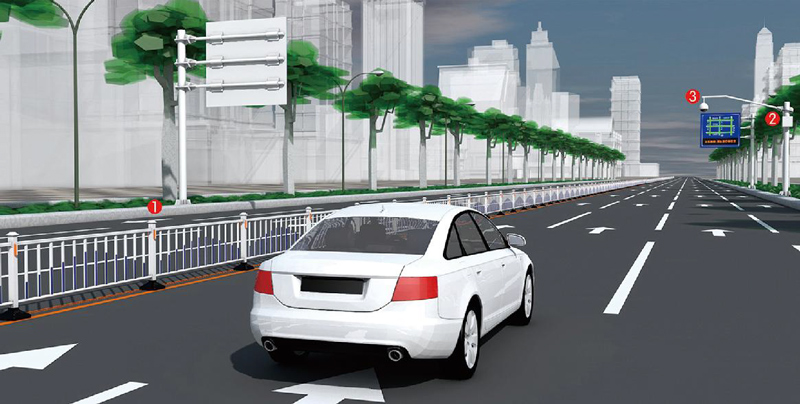

⑴ No. 1 alarm probe The sensor and wireless alarm probe are installed in the guardrail column, and a small antenna is extended.
⑵ Alarm receiving host
⑶ Infrared high-speed ball high-definition network camera
Features
24 hours × 365 days, uninterrupted detection of guardrail status
After receiving the alarm, the platform will notify the command center, guardrail maintenance center and local traffic police by phone and text message
When the guardrail tilts, moves or falls, an alarm will be immediately sent to the system
After the accident is handled, the system provides manual/automatic alarm elimination function. If it is not resolved within the specified time, higher-level management personnel can be notified by phone or text message again
Depending on different usage scenarios, the sensitivity of the device can be adjusted to identify the impact intensity
NB-IOT technology, ultra-low power consumption design
